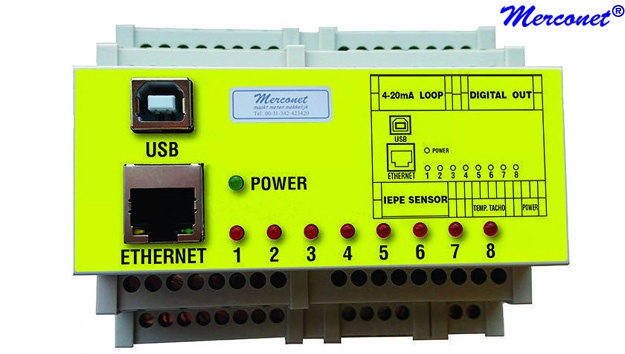

AJL0 Vibratie Monitor Ethernet 8 Ch



Bestel
The add to cart button will appear once you select the values above
Detail

The AJL0 is the new generation of low price-high performance installed vibration analyser. With up to 8 accelerometer inputs, 8 digital outputs, 8 analogue outputs, temperature and tacho inputs as well as USB and Ethernet connectivity, the AJL0 module offers unrivaled price/per channel performance. The analysers can be used in several different ways:
Standalone Operation: Connect up to 8 accelerometers and up to 8 relays and instantaneously monitor and alarm on-key vibration points. Using the included Monitor PC software the alarms can each independently be set to trigger on/either a velocity level or a g level. If a tacho is connected, a speed range can be set so as not to activate during machine start-up or shutdown.
Legacy Systems Operation: for each connected accelerometer, the Vibration Monitor units can also output levels of vibration (g or velocity) as 4 to 20mA signals for connection to existing monitoring systems such as PLCs, etc.
PC Operation: If a laptop/PC is connected via a USB cable, up to 64 modules can be monitored and the vibration levels displayed on screen. With the PC connected more detailed vibration analysis can be carried out with up to 51,200 line FFT analysis.
Online Cloud Operation: by subscribing to Data Decypher cloud-based service all installed modules can be monitored and analysed from a single web-based interface. Just log on via your standard internet browser and all modules can be viewed and configured. Furthermore, detailed reporting is just a click away, as is automatic alarm notification via email.


Kenmerk
  • 8 accelerometer channel version
  • 24VDC (relay drive) switched output for each channel (warning/critical, g or velocity)
  • 4 to 20mA output for each channel (g or velocity)
  • Temperature input
  • Tacho Input
  • USB for connection to PC software
  • Ethernet socket for connection to Online Vibration analysis software
  • Extremely cost effective – lowest cost/channel industrial vibration monitor/analyser
  • Very easy to set up using Monitor PC software
  • 24/7 monitoring of critical plant operations
  • Single low-cost unit monitors plant with local alarms, connects to high functionality PC analysis software AND connects to cloud-based monitoring and analysis software
Specificatie
Measurement
IEPE Accelerometer Input Channels: 8
Accelerometer Sampling Frequency: 2Hz - 25.6kHz
4-20mA Output Channels: 8
24VDC Digital Outputs: 8
24VDC Dig. Output Current Max: 100mA
Digital Output Alarm: Acceleration or Velocity (Channel Selectable)
Tachometer Input: 1 (0V to any voltage upto +24VDC)
Frequency Dependent Alarms: Yes (using Tachometer)
Temperature Input: 1 (Typically 10mV/°C)
PC Connection: USB
Internet/Cloud Connection: Ethernet
PC Software
Vibration Alarms: 8 Vibration
Temperature Alarm: 1 Temperature
Alarm Choice: Acceleration AND/OR Velocity (channel selectable)
FFT: 800 lines as Standard / Up to 51,200 lines option
Time Waveform: Yes
Electrical
Supply Voltage: USB or 24VDC
Supply Current: 500mA
Environmental: IP50
Operating Temperature: 0-55°C (32-151°F)
Storage Temperature: 0-55°C (32-151°F)
Mounting: DIN Rail
Goedkeuring: CE, RoHS en WEEE
Content

AJL0 Vibratie Monitor Ethernet 8 Ch
GB10 Gebruiksaanwijzing

Optie

CU78 Meten aan Materialen en Machines
KO10 Instrumentkoffer medium (105 mm)

Prijs
2.044,90 € (1.690,00 € excl VAT) each
